Massey Ferguson Fuel system
Ref Description Replacement part no Suitable for models
1 Fuel lift pump (With glass)   35, 135, 65 Perkins 4-192
2 Fuel lift pump (No glass) TP-40562 35, 135, 65 Perkins 4-192
3 Fuel lift pump   240
4 Glass bowl   35, 135, 65 Perkins 4-192
5 Fuel lift pump Perkins 4-203 TP100-6 65 Perkins 4-203
6 Fuel lift pump Perkins 4-212   165, 175, 188 (Early)
7 Fuel lift pump Perkins 4-236, 4-248 TP40559 165, 178, 185,188, 265, 275, 290,
8 Fuel tap TP11194 35, 135, 240, 65
9 Fuel tap TP103-3 165, 175, 178, 185, 188, 265, 290
1
4
5
6
7
8
15

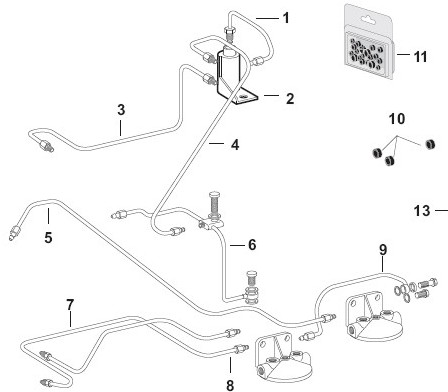

Ref Description Replacement part no Suitable for models
1 Fuel pipe   35, 135, 240
2 Fuel accumulator TP-40562 35, 135, 240, 165, 175, 178
3 Fuel pipe   35, 135, 240
4 Fuel pipe   35, 135, 240
5 Fuel pipe TP100-6 35, 135, 240
6 Fuel pipe   35, 135, 240
7 Fuel pipe TP40559 35, 135, 240
8 Fuel pipe TP11194 35, 135, 240,
9 Fuel pipe TP103-3 35, 135, 240
10 Rubber grommet   All models
11 Fuel tank   135, 240
12 Fuel filter head   All models
13 Fuel filter assembly TP1-100 All models
14 Fuel filter primary GP184 35, 65
14 Fuel filter G629 35, 135, 240, 65, 165, 175, 185, 188
14 Fuel filter G912 265, 275, 285, 290
15 Fuel tank cap   All models
16 Fuel filter bowl TP1-145 All models
17 Heater plug TP40626 All models

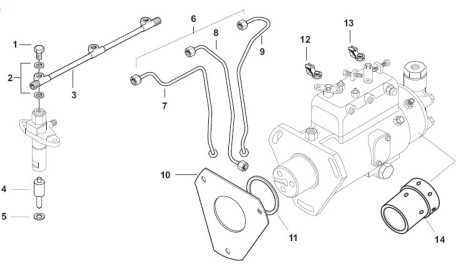

Ref Description Replacement part no Suitable for models
1 Injector bleed screw TP1-135 All models exept 35, 65 4-192
2 Copper washer 8mm TP-40562 All models
3 Leak off pipe   135, 240
4 Injector nozzle   135, 240
5 Injector washer TP100-6 135, 240, 165, 188, 290
6 Injector pipe set   135, 240
7 Injector pipe no 1 TP1-80 135, 240
8 Injector pipe no 2 TP1-81 135, 240
9 Injector pipe no 3 TP1-83 135, 240
10 Injector pump gasket   All models
11 N/A
12 Accelerator clip TP1-67 All models
13 Stop rod clip TP1-67 All models
14 Injector pump head and rotor
