Massey Ferguson clutch & pressure plate parts
Ref |
Description |
Replacement part no |
Suitable for models |
1 |
Input housing 8 spd constant mesh |
|
240, 188, 265, 290 |
2 |
Locking bolt |
|
|
3 |
Carrier fork |
|
|
4 |
Carrier shaft |
|
|
5 |
Clutch pedal shaft |
|
|
6 |
PTO input shaft oil seal 8spd |
|
|
7 |
Main input shaft oil seal 8spd |
|
|
8 |
Input housing bolt |
|
|
9 |
Input housing multipower |
|
|
10 |
Discontinued |
|
|
11 |
Input housing bolt |
|
|
12 |
Input housing seal |
|
|
13 |
PTO input shaft bearing |
|
|
14 |
Gearbox top gasket |
|
|
15 |
Thrust bearing carrier |
|
|
16 |
Main input shaft oil seal 6 spd single |
|
|
17 |
Carrier return spring |
|
|
18 |
Input housing 6 spd |
|
|
19 |
Gasket |
|
|
20 |
Main input shaft bearing 6 spd |
|
|
21 |
Bolt |
|
|
22 |
Clutch shaft bush |
|
|
23 |
Brake shaft bush |
|
|
24 |
Clutch pedal |
|
|
25 |
Gearbox / diff gasket |
|
|

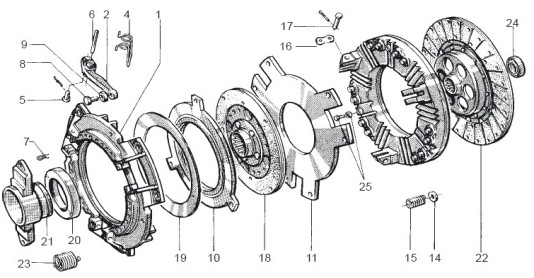

Ref |
Description |
OEM part no |
Replacement part no |
Suitable for models |
1 |
Pressure plate top |
|
|
35, 135, 65 |
2 |
Finger |
|
|
|
3 |
Reserved |
|
|
|
4 |
Finger spring |
|
|
|
5 |
Link pin |
|
|
|
6 |
Finger pin |
|
|
|
7 |
Finger pin retaining clip |
|
|
|
8 |
Finger bolt |
|
|
|
9 |
Finger bolt lock nut |
|
|
|
10 |
Discontinued |
|
|
|
11 |
Friction plate |
|
|
|
12 |
Reserved |
|
|
|
13 |
Reserved |
|
|
|
14 |
Fibre washer |
|
|
|
15 |
Spring |
|
|
|
16 |
Link |
|
|
|
17 |
Link pin |
|
|
|
18 |
PTO clutch plate 9" |
|
|
|
19 |
Belville washer |
|
|
|
20 |
Clutch release bearing |
|
|
|
21 |
Carrier |
|
|
|
22 |
Main clutch plate 11" |
|
|
|
23 |
Carrier return spring |
|
|
|
24 |
Pilot bearing |
|
|
|
25 |
PTO adjusting bolt & nut |
|
|
|
Pressure plate assembly 11"
Main clutch plate 11" (280mm)
10 spline
3/8" thickness (9.53mm)
PTO clutch plate 9" (230mm)
10 spline
3/8" thickness (9.53mm)
OEM numbers are quoted for reference purposes only and do not imply that they are origional parts
Pressure plate assembly 12"
Ref |
Description |
OEM part no |
Replacement part no |
Suitable for models |
1 |
Pressure plate top |
|
|
35, 135, 65 |
2 |
Finger |
|
|
|
3 |
Reserved |
|
|
|
4 |
Finger spring |
|
|
|
5 |
Link pin |
|
|
|
6 |
Finger pin |
|
|
|
7 |
Finger pin retaining clip |
|
|
|
8 |
Finger bolt |
|
|
|
9 |
Finger bolt lock nut |
|
|
|
10 |
Discontinued |
|
|
|
11 |
Friction plate |
|
|
|
12 |
Reserved |
|
|
|
13 |
Reserved |
|
|
|
14 |
Fibre washer |
|
|
|
15 |
Spring |
|
|
|
16 |
Link |
|
|
|
17 |
Link pin |
|
|
|
18 |
PTO clutch plate 10" 10 spline |
|
|
|
18 |
PTO clutch plate 10" 25 spline |
|
|
|
19 |
Belville washer |
|
|
|
20 |
Clutch release bearing |
|
|
|
21 |
Carrier |
|
|
|
22 |
Main clutch plate 12" 10 spline |
|
|
|
22 |
Main clutch plate 12" 25 spline |
|
|
|
23 |
Carrier return spring |
|
|
|
24 |
Pilot bearing |
|
|
|
25 |
PTO adjusting bolt & nut |
|
|
|
Main clutch plate 12" (305mm)
10 spline / 25 spline
3/8" thickness (9.53mm)
PTO clutch plate 10" (254mm)
10 spline / 25 spline
3/8" thickness (9.53mm)
For 11" pressure plate use 6 red springs on 35 / 135 models and 9 springs on 65 model (Item no 15)
Refer to Massey Ferguson trouble shooting guide for pressure plate adjustments and advice
